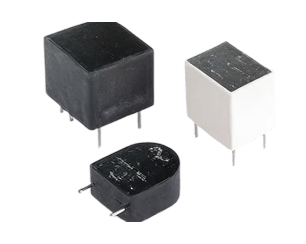

Current Sense Transformer
- Normal temperature range: 0C to 70C.
- Extended temperature range: -40C to 85C.
- Provides 1500Vrms isolation.
- Designed to match the leading transceiver chips.
- Through hole mounting.
| Product | Primary Current (max) | Secondary Turns | Frequency (GHz) | Diameter | Min. Secondary Inductance (mH) | Description |
|---|---|---|---|---|---|---|
| TR-3025-PC | 100 | 300 | 50-400 Hz | 0.056 | ||
| TR-5025-PC | 100 | 500 | 50-400 Hz | 0.056 | ||
| TR-10025-PC | 100 | 1000 | 50-400 Hz | 0.056 | ||
| TR-20025-PC | 100 | 2000 | 50-400 Hz | 0.056 | ||
| TR-30025-PC | 100 | 3000 | 50-400 Hz | 0.056 | ||
| CST-0050-2T | 20 | 50 | >20KHz | 5 | 2 Single Turn Primary | |
| CST-0100-2T | 20 | 100 | >20KHz | 20 | 2 Single Turn Primary | |
| CST-0200-2T | 20 | 200 | >20KHz | 80 | 2 Single Turn Primary | |
| CST-0050-2TCT | 20 | 50 | >20KHz | 5 | 2 Single Turn Primary | |
| CST-0100-2TCT | 20 | 100 | >20KHz | 20 | 2 Single Turn Primary | |
| CST-0200-2TCT | 20 | 200 | >20KHz | 80 | 2 Single Turn Primary | |
| CST-0300-2TCT | 20 | 300 | >20KHz | 180 | 2 Single Turn Primary | |
| CST-0050-1T | 20 | 50 | >20KHz | 5 | Single Turn Primary | |
| CST-0100-1T | 20 | 100 | >20KHz | 20 | Single Turn Primary | |
| CST-0200-1T | 20 | 200 | >20KHz | - | 80 | Single Turn Primary |
| CST-0050-1TCT | 20 | 50 | >20KHz | - | 5 | Single Turn Primary |
| CST-0100-1TCT | 20 | 100 | >20KHz | - | 20 | Single Turn Primary |
| CST-0200-1TCT | 20 | 200 | >20KHz | - | 80 | Single Turn Primary |
| CST-0300-1TCT | 20 | 300 | >20KHz | - | 180 | Single Turn Primary |
| CSI-0050 | 20 | 50 | >20KHz | 0.17 | 5 | Tombstone PCB Mount |
| CSI-0100 | 20 | 100 | >20KHz | 0.17 | 20 | Tombstone PCB Mount |
| CSI-0200 | 20 | 200 | >20KHz | 0.17 | 80 | Tombstone PCB Mount |
| CSI-0050-CT | 20 | 50 | >20KHz | 0.17 | 5 | Tombstone PCB Mount Center Tap |
| CSI-0100-CT | 20 | 100 | >20KHz | 0.17 | 20 | Tombstone PCB Mount Center Tap |
| CSI-0200-CT | 20 | 200 | >20KHz | 0.17 | 80 | Tombstone PCB Mount Center Tap |
| CSI-0300-CT | 20 | 300 | >20KHz | 0.17 | 180 | Tombstone PCB Mount Center Tap |
