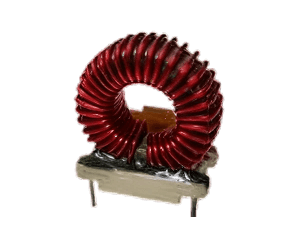

Horizontal Mount Toroidal Inductors Encapsulated
- Encapsulated construction in horizontal mount with through-hole mounting.
- Powdered Iron Core.
- High Inductance to space ratio.
- Low heat and noise (EMI/RFI)emission.
- Built to meet UL Class B (130°C)requirements
| Product | Inductance (uH) | Rated A | Max DCR (Ω) | Min ET (Vus) | Application |
|---|---|---|---|---|---|
| 418-0922-01 | 220 | 1.4 | 230 | 90 | Open Frame Power Supply Ruggedized Inductor |
| 418-0926-01 | 330 | 0.9 | 302 | 90 | Open Frame Power Supply Ruggedized Inductor |
| 418-0928 | 680 | 0.42 | 562 | 90 | Open Frame Power Supply Ruggedized Inductor |
