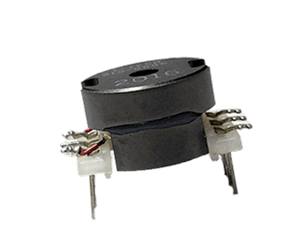

LM15 / LM25 Flyback Transformers
- Pot Core/ Touchtone designs.
- High Inductance to space ratio.
- Low heat and noise (EMI/RFI) emission.
- Built to meet UL Class B (130°C).
- Originally designed for use with National Semiconductor’s Simple Switchers. Step-Down Voltage Regulator Series:
- LM1577-XX/LM2577-XX.
- LM1577-XX/LM2577-XX.
- Hipot tested 500Vdc
| Product | Inductance (uH) | Input V | Output (V) | lout | Ω (max) |
|---|---|---|---|---|---|
| 330-0202 | 200 (180-210) | 12 | +/-15V | 575ma | 2 |
| 330-0203 | 250 (240-270) | 15 | +/-15V | 700ma | 2 |
