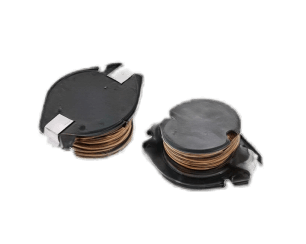

Surface Mount Power Inductors
- Ferrite Bobbin/Drum core.
- High Current capacity.
- Compact dimensions.
- Very stable inductance over current range
- Ideal for Reflow Soldering.
- Tape and reel standard packaging.
- Low resistance and high energy storage.
| Product | Inductance (uH) | Rated A | Max DCR (Ω) | SRF (MHz) | Application |
|---|---|---|---|---|---|
| 523-3308-1R0M | 1 | 8.6 | 0.009 | 80 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-1602-1R0M | 1 | 2.9 | 0.05 | 130 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-1628-1R5M | 1.5 | 2.8 | 0.05 | 115 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-5022-100M | 10 | 4.3 | 0.031 | 30 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-3340-100M | 10 | 3.5 | 0.04 | 22 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-3308-1D0M | 10 | 2 | 0.11 | 35 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-3308-10DM | 10 | 1.1 | 0.16 | 35 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-5022-101M | 100 | 1.8 | 0.19 | 7 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-3340-101M | 100 | 1.2 | 0.22 | 5 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-3308-101M | 100 | 0.6 | 0.84 | 10 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-3308-10PM | 100 | 0.3 | 1.27 | 9 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-5022-102M | 1000 | 0.56 | 1.8 | 2 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-3340-102M | 1000 | 0.1 | 2 | 1.5 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-3308-102M | 1000 | 0.05 | 8.4 | 2.5 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-1608-1R0M | 1000 | 0.07 | 13.8 | 2 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-1602-150M | 15 | 4 | 0.036 | 22 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-3340-150M | 15 | 3 | 0.05 | 18 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-3308-150M | 15 | 1.5 | 0.15 | 33 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-1608-150M | 15 | 1.2 | 0.23 | 30 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-1602-151M | 15 | 1.5 | 0.25 | 60 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-3340-151M | 15 | 0.9 | 0.34 | 4 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-3308-151M | 15 | 0.5 | 1.2 | 8 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-1608-151M | 15 | 0.25 | 2 | 6 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-5022-282M | 2.2 | 7.1 | 0.014 | 90 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-5022-282M | 2.2 | 2.4 | 0.07 | 90 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-5022-220M | 22 | 3.5 | 0.047 | 20 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-3340-220M | 22 | 2.5 | 0.066 | 11 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-3308-220M | 22 | 1.3 | 0.23 | 25 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-1608-220M | 22 | 0.8 | 0.37 | 20 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-5022-221M | 220 | 1.2 | 0.38 | 5 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-3340-221M | 220 | 0.7 | 0.44 | 3.5 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-3308-221M | 220 | 0.4 | 1.9 | 6 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-1608-221M | 220 | 0.2 | 3.11 | 5.5 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-5022-383M | 3.3 | 6.2 | 0.018 | 60 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-1608-383M | 3.3 | 2 | 0.08 | 70 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-1608-430M | 4.7 | 1.5 | 0.09 | 50 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-5022-430M | 47 | 2.6 | 0.086 | 9 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-3340-430M | 47 | 1.6 | 0.11 | 8 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-1608-430M | 47 | 0.8 | 0.39 | 14 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-1608-470M | 47 | 0.5 | 0.64 | 14 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-5022-471M | 470 | 0.82 | 0.85 | 3 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-3340-471M | 470 | 0.3 | 0.95 | 2 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-3308-471M | 470 | 0.2 | 4 | 6 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-1608-471M | 470 | 0.15 | 5.06 | 4 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-5022-586M | 5.6 | 5.3 | 0.02 | 40 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-1608-586M | 6.8 | 1.4 | 0.13 | 45 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-5022-680M | 68 | 2.3 | 0.13 | 8 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-3340-680M | 68 | 1.2 | 0.17 | 7 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-3308-680M | 68 | 0.7 | 0.66 | 12 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-1608-680M | 68 | 0.4 | 0.86 | 11 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-5022-681M | 680 | 0.72 | 1.1 | 2.5 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-3340-681M | 680 | 0.16 | 3.8 | 5 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-3308-681M | 680 | 0.12 | 5.3 | 3 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
| 523-1608-681M | 680 | 0.1 | 9.2 | 3 | LED Lighting Drive Circuits; Power Circuits in High Thermal Demand |
