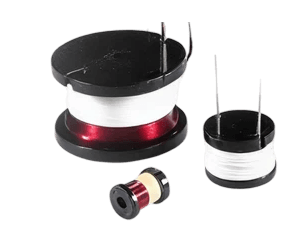

Drum Core Power Inductors
- Broad range of inductance values; 0.8-1000uH.
- From low to high currents; 0.1 – 30 Amps.
- Small PCB space, in 5 standard sizes.
- Very stable inductance over current range.
- Class B (130°C) insulation system.
- Other sizes and values are available.
| Product | Inductance (uH) | Rated A | Max DCR (Ω) | Application |
|---|---|---|---|---|
| 423-0265 | 0.8 | 25 | 0.002 | Varying Load Demand Power Supplies |
| 423-0279 | 0.8 | 30 | 0.0013 | Varying Load Demand Power Supplies |
| 423-0205 | 1 | 10 | 0.004 | Varying Load Demand Power Supplies |
| 423-0227 | 1 | 15 | 0.0032 | Varying Load Demand Power Supplies |
| 423-0246 | 1 | 20 | 0.0026 | Varying Load Demand Power Supplies |
| 423-0266 | 1.3 | 25 | 0.0022 | Varying Load Demand Power Supplies |
| 423-0280 | 1.3 | 30 | 0.0016 | Varying Load Demand Power Supplies |
| 423-0194 | 1.6 | 7.5 | 0.006 | Varying Load Demand Power Supplies |
| 423-0206 | 1.6 | 10 | 0.0043 | Varying Load Demand Power Supplies |
| 423-0228 | 1.6 | 15 | 0.0037 | Varying Load Demand Power Supplies |
| 423-0247 | 1.6 | 20 | 0.003 | Varying Load Demand Power Supplies |
| 423-0156 | 10.9 | 2 | 0.18 | Varying Load Demand Power Supplies |
| 423-0169 | 10.9 | 3 | 0.012 | Varying Load Demand Power Supplies |
| 423-0245 | 100 | 15 | 0.02 | Varying Load Demand Power Supplies |
| 423.0226 | 100 | 10 | 0.03 | Varying Load Demand Power Supplies |
| 423-0193 | 100 | 5 | 0.05 | Varying Load Demand Power Supplies |
| 423-0120 | 100 | 0.75 | 0.16 | Varying Load Demand Power Supplies |
| 423-0135 | 100 | 1 | 0.12 | Varying Load Demand Power Supplies |
| 423-0149 | 100 | 1.5 | 0.06 | Varying Load Demand Power Supplies |
| 423-0116 | 1000 | 0.5 | 0.65 | Varying Load Demand Power Supplies |
| 423-0165 | 103 | 2 | 0.073 | Varying Load Demand Power Supplies |
| 423-0177 | 108 | 3 | 0.072 | Varying Load Demand Power Supplies |
| 423-0198 | 11 | 7.5 | 0.015 | Varying Load Demand Power Supplies |
| 423-0214 | 11 | 10 | 0.0113 | Varying Load Demand Power Supplies |
| 423-0255 | 11.2 | 20 | 0.0061 | Varying Load Demand Power Supplies |
| 423-0273 | 11.2 | 25 | 0.005 | Varying Load Demand Power Supplies |
| 423-0287 | 11.2 | 30 | 0.004 | Varying Load Demand Power Supplies |
| 423-0235 | 12 | 15 | 0.0092 | Varying Load Demand Power Supplies |
| 423-0157 | 12.4 | 2 | 0.02 | Varying Load Demand Power Supplies |
| 423-0183 | 12.5 | 5 | 0.015 | Varying Load Demand Power Supplies |
| 423-0136 | 120 | 1 | 0.13 | Varying Load Demand Power Supplies |
| 423-0107 | 120 | 0.5 | 0.2 | Varying Load Demand Power Supplies |
| 423-0166 | 125 | 2 | 0.084 | Varying Load Demand Power Supplies |
| 423-0150 | 130 | 1.5 | 0.8 | Varying Load Demand Power Supplies |
| 423-0178 | 131 | 3 | 0.084 | Varying Load Demand Power Supplies |
| 423-0121 | 133 | 0.75 | 0.18 | Varying Load Demand Power Supplies |
| 423-0199 | 14 | 7.5 | 0.017 | Varying Load Demand Power Supplies |
| 423-0215 | 14.2 | 10 | 0.0128 | Varying Load Demand Power Supplies |
| 423-0216 | 15.8 | 10 | 0.014 | Varying Load Demand Power Supplies |
| 423-0158 | 15.9 | 2 | 0.022 | Varying Load Demand Power Supplies |
| 423-0170 | 15.9 | 3 | 0.014 | Varying Load Demand Power Supplies |
| 423-0122 | 150 | 0.75 | 0.19 | Varying Load Demand Power Supplies |
| 423-0137 | 150 | 1 | 0.15 | Varying Load Demand Power Supplies |
| 423-0236 | 16 | 15 | 0.01 | Varying Load Demand Power Supplies |
| 423-0184 | 16 | 5 | 0.017 | Varying Load Demand Power Supplies |
| 423-0256 | 16.4 | 20 | 0.0073 | Varying Load Demand Power Supplies |
| 423-0274 | 16.4 | 25 | 0.006 | Varying Load Demand Power Supplies |
| 423-0288 | 16.4 | 30 | 0.0048 | Varying Load Demand Power Supplies |
| 423-0151 | 160 | 1.5 | 0.9 | Varying Load Demand Power Supplies |
| 423-0167 | 168 | 2 | 0.098 | Varying Load Demand Power Supplies |
| 423-0179 | 168 | 3 | 0.095 | Varying Load Demand Power Supplies |
| 423-0217 | 18 | 10 | 0.015 | Varying Load Demand Power Supplies |
| 423-0237 | 18.5 | 15 | 0.0106 | Varying Load Demand Power Supplies |
| 423-0123 | 180 | 0.75 | 0.21 | Varying Load Demand Power Supplies |
| 423-0142 | 180 | 1.5 | 0.026 | Varying Load Demand Power Supplies |
| 423-0108 | 185 | 0.5 | 0.24 | Varying Load Demand Power Supplies |
| 423-0171 | 19.7 | 3 | 0.016 | Varying Load Demand Power Supplies |
| 423-0267 | 2 | 25 | 0.0026 | Varying Load Demand Power Supplies |
| 423-0281 | 2 | 30 | 0.0019 | Varying Load Demand Power Supplies |
| 423-0207 | 2.2 | 10 | 0.0054 | Varying Load Demand Power Supplies |
| 423-0229 | 2.2 | 15 | 0.0042 | Varying Load Demand Power Supplies |
| 423-0248 | 2.2 | 20 | 0.0034 | Varying Load Demand Power Supplies |
| 423-0282 | 2.7 | 30 | 0.002 | Varying Load Demand Power Supplies |
| 423-0249 | 2.8 | 20 | 0.0031 | Varying Load Demand Power Supplies |
| 423-0268 | 2.8 | 25 | 0.0028 | Varying Load Demand Power Supplies |
| 423-0208 | 2.9 | 10 | 0.0058 | Varying Load Demand Power Supplies |
| 423-0230 | 2.9 | 15 | 0.0047 | Varying Load Demand Power Supplies |
| 423-0185 | 20 | 5 | 0.019 | Varying Load Demand Power Supplies |
| 423-0200 | 20 | 7.5 | 0.019 | Varying Load Demand Power Supplies |
| 423-0124 | 200 | 0.75 | 0.22 | Varying Load Demand Power Supplies |
| 423-0138 | 200 | 1 | 0.17 | Varying Load Demand Power Supplies |
| 423-0109 | 200 | 0.5 | 0.25 | Varying Load Demand Power Supplies |
| 423-0218 | 21 | 10 | 0.014 | Varying Load Demand Power Supplies |
| 423-0238 | 21 | 15 | 0.0113 | Varying Load Demand Power Supplies |
| 423-0159 | 21.8 | 2 | 0.025 | Varying Load Demand Power Supplies |
| 423-0143 | 22 | 1.5 | 0.03 | Varying Load Demand Power Supplies |
| 423-0257 | 22.5 | 20 | 0.0085 | Varying Load Demand Power Supplies |
| 423-0275 | 22.6 | 25 | 0.007 | Varying Load Demand Power Supplies |
| 423-0289 | 22.6 | 30 | 0.0056 | Varying Load Demand Power Supplies |
| 423-0152 | 220 | 1.5 | 0.1 | Varying Load Demand Power Supplies |
| 423-0125 | 220 | 0.75 | 0.23 | Varying Load Demand Power Supplies |
| 423-0110 | 240 | 0.5 | 0.27 | Varying Load Demand Power Supplies |
| 423-0186 | 25 | 5 | 0.022 | Varying Load Demand Power Supplies |
| 423-0201 | 25 | 7.5 | 0.022 | Varying Load Demand Power Supplies |
| 423-0172 | 25 | 3 | 0.028 | Varying Load Demand Power Supplies |
| 423-0139 | 250 | 1 | 0.19 | Varying Load Demand Power Supplies |
| 423-0168 | 250 | 2 | 0.147 | Varying Load Demand Power Supplies |
| 423-0239 | 26 | 15 | 0.012 | Varying Load Demand Power Supplies |
| 423-0258 | 26 | 20 | 0.0091 | Varying Load Demand Power Supplies |
| 423-0160 | 26.3 | 2 | 0.027 | Varying Load Demand Power Supplies |
| 423-0276 | 26.4 | 25 | 0.0064 | Varying Load Demand Power Supplies |
| 423-0219 | 27 | 10 | 0.16 | Varying Load Demand Power Supplies |
| 423-0144 | 27 | 1.5 | 0.032 | Varying Load Demand Power Supplies |
| 423-0126 | 270 | 0.75 | 0.25 | Varying Load Demand Power Supplies |
| 423-0195 | 3 | 7.5 | 0.008 | Varying Load Demand Power Supplies |
| 423-0283 | 3.7 | 30 | 0.0024 | Varying Load Demand Power Supplies |
| 423-0231 | 3.7 | 15 | 0.0054 | Varying Load Demand Power Supplies |
| 423-0250 | 3.7 | 20 | 0.0035 | Varying Load Demand Power Supplies |
| 423-0269 | 3.7 | 25 | 0.0032 | Varying Load Demand Power Supplies |
| 423-0209 | 3.8 | 10 | 0.0066 | Varying Load Demand Power Supplies |
| 423-0290 | 30 | 30 | 0.0068 | Varying Load Demand Power Supplies |
| 423-0187 | 30 | 5 | 0.024 | Varying Load Demand Power Supplies |
| 423-0111 | 300 | 0.5 | 0.29 | Varying Load Demand Power Supplies |
| 423-0161 | 31.2 | 2 | 0.032 | Varying Load Demand Power Supplies |
| 423-0220 | 33 | 10 | 0.018 | Varying Load Demand Power Supplies |
| 423-0145 | 33 | 1.5 | 0.035 | Varying Load Demand Power Supplies |
| 423-0202 | 33 | 7.5 | 0.026 | Varying Load Demand Power Supplies |
| 423-0277 | 33.7 | 25 | 0.0072 | Varying Load Demand Power Supplies |
| 423-0153 | 330 | 1.5 | 0.13 | Varying Load Demand Power Supplies |
| 423-0127 | 330 | 0.75 | 0.27 | Varying Load Demand Power Supplies |
| 423-0140 | 330 | 1 | 0.21 | Varying Load Demand Power Supplies |
| 423-0240 | 34 | 15 | 0.0137 | Varying Load Demand Power Supplies |
| 423-0259 | 34 | 20 | 0.0103 | Varying Load Demand Power Supplies |
| 423-0173 | 34 | 3 | 0.034 | Varying Load Demand Power Supplies |
| 423-0162 | 36 | 2 | 0.034 | Varying Load Demand Power Supplies |
| 423-0291 | 37.6 | 30 | 0.0076 | Varying Load Demand Power Supplies |
| 423-0260 | 38 | 20 | 0.011 | Varying Load Demand Power Supplies |
| 423-0117 | 39 | 0.75 | 0.1 | Varying Load Demand Power Supplies |
| 423-0130 | 39 | 1 | 0.06 | Varying Load Demand Power Supplies |
| 423-0180 | 4.7 | 5 | 0.009 | Varying Load Demand Power Supplies |
| 423-0210 | 4.7 | 10 | 0.0074 | Varying Load Demand Power Supplies |
| 423-0232 | 4.8 | 15 | 0.0061 | Varying Load Demand Power Supplies |
| 423-0251 | 4.8 | 20 | 0.004 | Varying Load Demand Power Supplies |
| 423-0221 | 40 | 10 | 0.02 | Varying Load Demand Power Supplies |
| 423-0146 | 40 | 1.5 | 0.038 | Varying Load Demand Power Supplies |
| 423-0188 | 40 | 5 | 0.029 | Varying Load Demand Power Supplies |
| 423-0112 | 400 | 0.5 | 0.34 | Varying Load Demand Power Supplies |
| 423-0241 | 42 | 15 | 0.0153 | Varying Load Demand Power Supplies |
| 423-0242 | 42 | 15 | 0.017 | Varying Load Demand Power Supplies |
| 423-0128 | 450 | 0.75 | 0.32 | Varying Load Demand Power Supplies |
