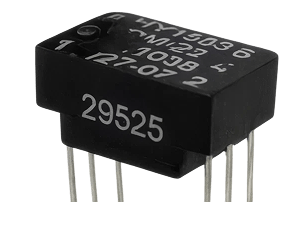

Isolation & Communications Transformers
- Normal temperature range: 0C to 70C.
- Extended temperature range: -40C to 85C.
- Provides 1500Vrms isolation.
- Designed to match the leading transceiver chips.
- Through hole mounting.
| Product | Turns Ratio | OCL@25C (mH) | Ll (uH) | Cw/w (pF) | DCR Primary | DCR Secondary (Ω) |
|---|---|---|---|---|---|---|
| 318-3000 | 1:1:1 (2CT) | 1.25 | 0.5 | 20 | 0.65 | 0.65&0.65 |
| 318-3001 | 1CT:3CT | 1.25 | 0.5 | 35 | 0.65 | 1.55 |
| 318-3002 | 1:01 | 1.25 | 0.5 | 20 | 0.65 | 0.65 |
| 318-3003 | 1CT:1 | 1.25 | 0.8 | 20 | 0.65 | 0.65 |
| 318-3004 | 01:01.4 | 1.25 | 0.8 | 30 | 0.65 | 0.75 |
| 318-3005 | 01:01.6 | 0.3 | 0.6 | 25 | 0.40/0.40 | 0.6 |
| 318-3006 | 1:01:02 | 0.8 | 0.6 | 25 | 0.40/0.40 | 0.6 |
| 318-3007 | 01:02.6 | 0.8 | 0.4 | 25 | 0.40/0.40 | 0.6 |
| 318-3008 | 1CT:2CT | 1.25 | 0.55 | 25 | 0.65 | 1.2 |
| 318-3009 | 1:2CT | 1.25 | 0.5 | 35 | 0.65 | 1.2 |
| 318-3010 | 1:2CT | 2 | 0.5 | 35 | 0.65 | 1.4 |
| 318-3011 | 1:4CT | 0.5 | 1 | 35 | 0.45 | 1.5 |
| 318-3012 | 1:1.14CT | 1.25 | 0.8 | 30 | 0.65 | 0.8 |
| 318-3013 | 1:1.15CT | 1.5 | 0.6 | 30 | 0.65 | 0.9 |
| 318-3014 | 01:01.3 | 1.5 | 0.4 | 30 | 0.65 | 0.9 |
| 318-3015 | 1CT:2CT | 1.25 | 0.55 | 25 | 0.65 | 1.2 |
| 318-3016 | 1:2.3CT | 1.25 | 0.8 | 30 | 0.65 | 1.2 |
| 318-3017 | 1:1.36CT | 1.25 | 0.8 | 30 | 0.64 | 0.9 |
| 318-3018 | 1CT:1CT | 1.25 | 0.8 | 30 | 0.75 | 0.8 |
| 318-3020 | 01:01.4 | 1.25 | 0.8 | 30 | 0.85 | 1.25 |
| 318-3021 | 1:1.15CT | 1.5 | 0.8 | 35 | 0.85 | 1 |
| 318-3022 | 1CT:2CT | 1.25 | 0.6 | 40 | 1 | 2 |
| 318-3023 | 1CT:1CT | 1.25 | 1.1 | 45 | 1 | 1 |
